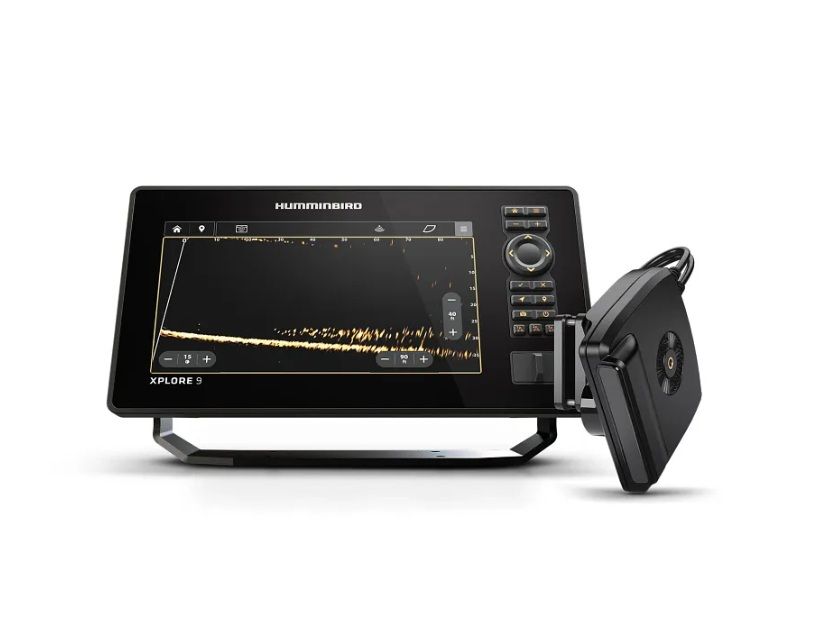

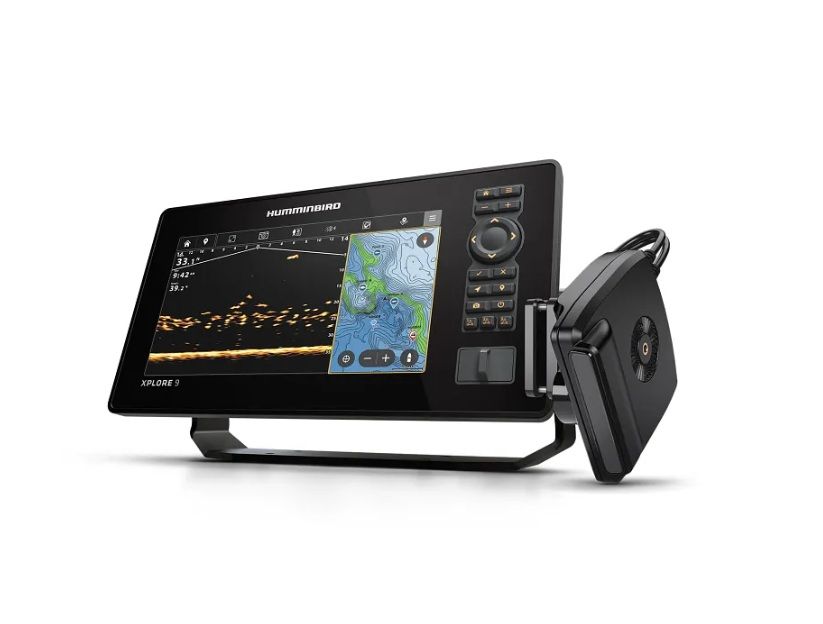

Humminbird ICE X9 CHO Mega Live2 Bundle
Model: 412340-1Take your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle delivering next-gen clarity, helping anglers catch more fish and enjoy every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.
Easy to Use: ICE XPLORE's intuitive and streamlined interface provides quick access to the key functions you need on the ice.

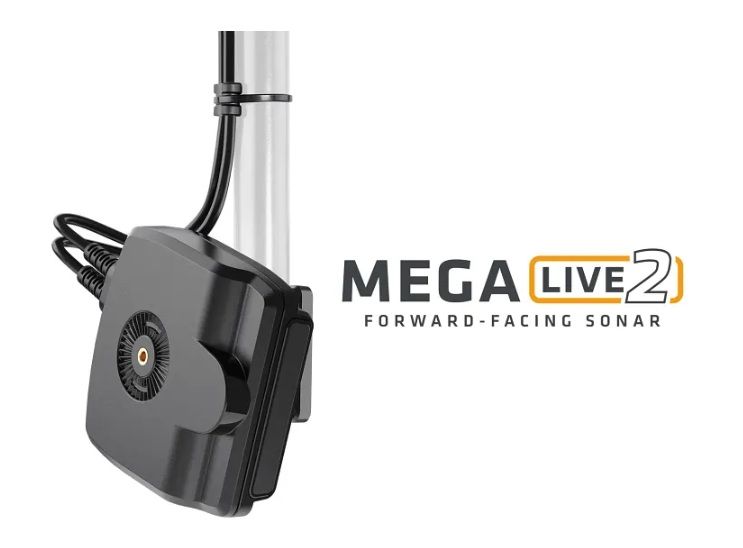

Unmatched Clarity: MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail.
LakeMaster VX Maps Included: Navigate over 13,000 lakes with 1-foot contours and depth and shallow water highlights, all included with ICE XPLORE.
Designed For Ice Anglers: ICE XPLORE comes preset in Ice Mode, optimizing your experience for hardwater use. This includes a consolidated home screen, ice-themed waypoints, battery runtime monitoring, and flasher and 2D sonar views.
Specifications| Display Size - Diagonal | 10.1 in |
| Length | 6.26 in - 15.9 cm |
| Height | 11.69 in - 29.69 cm |
| Width | 3.3 in - 8.38 cm |
| Weight | 4 lb 4.48 oz - 1.94138 kg |
| Display Pixel Matrix | 1280 x 720 |
| Transducer Included | MEGA Live Imaging |
| Compatible With | Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2 |
| Features | Touch Screen, MEGA Live Imaging, Networking, Built In GPS, All Season, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
| Memory Card Slot | Dual Micro SD |
| Sonar-Standard | MEGA Side Imaging+, MEGA Down Imaging, MEGA Side Imaging, MEGA Down Imaging+ |
| Sonar-Coverage | 20°, 42°, 60° & (2) 86° @ -10dB |
| Live Sonar-Coverage | 20 degrees x 120 degrees |
| Interface | Touch Screen, Keypad Control |
| Power Draw | 2.2 Amps |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Warranty | Three-Year Warranty with Registration, One-Year Warranty |
